Iridium 9555 - Inserting and Removing the SIM card

This guide provides step-by-step instructions for safely inserting and removing the SIM card from your Iridium 9555 satellite phone. Whether you are setting up the device for the first time or replacing an existing SIM, following these steps will help ensure proper function and avoid damage to the SIM slot.

Inserting the SIM Card

1. Remove the SIM card from the larger card frame.
2. Power off the phone and remove the battery from the back of the device.
   For detailed steps, see: Iridium 9555 - Installing and Removing the Battery.

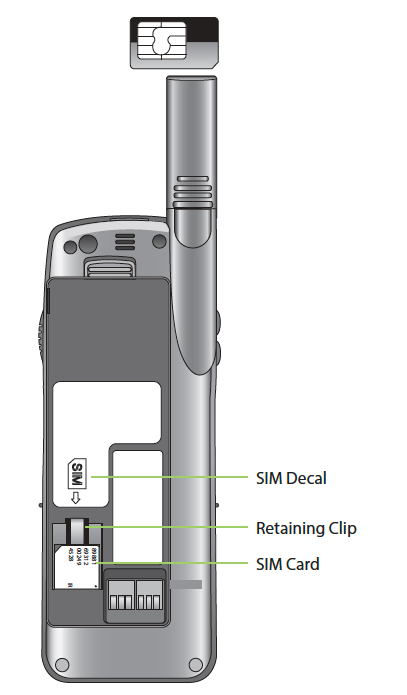

3. Locate the SIM card slot beneath the battery compartment.
4. Insert the SIM card into the slot using the orientation guide printed near the slot (SIM decal):
   • The slanted edge of the SIM card should match the slanted edge of the slot.
   • The metal contacts should face down.
   • The printed number side should face up and remain visible.
5. Gently slide the SIM card into place.
   • Keep it flush with the phone to avoid damaging the SIM slot pins.
   • The retaining clip will hold the card securely.

Removing the SIM Card

1. Power off the device and remove the battery.
2. Gently press the retaining clip inward to release the SIM card.
3. Carefully slide the SIM card out, keeping it flush with the phone.

Tip: Ensure all three gold SIM pins remain even and undamaged during removal.
