Your Iridium Extreme® satellite phone includes several buttons designed to make communication quick, safe, and reliable.
This guide shows the location and function of each button so you can recognize them at a glance and understand how they’re used during operation.
Tip: Familiarizing yourself with the button layout before heading into the field can save time and help ensure smooth operation in low-visibility or emergency situation
Front View

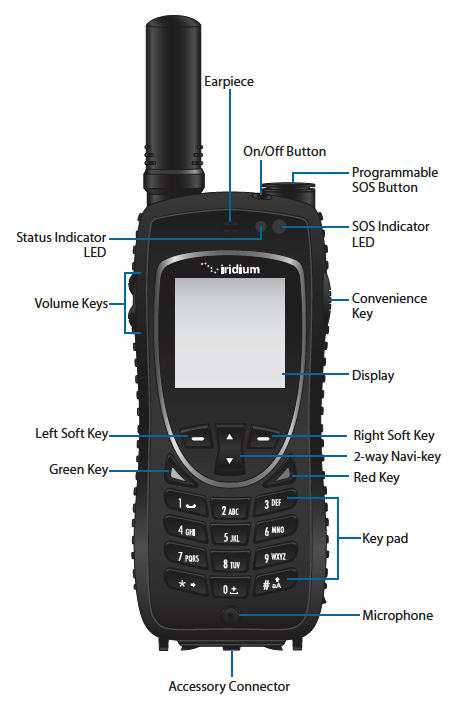

(Image: Front view of the Iridium Extreme showing key buttons. Alt text: Iridium Extreme front view with labelled buttons and screen.)
| Button | Function | Use It For |
|---|---|---|
| On/Off Button | Powers the phone on and off. | Press and hold until the screen lights up or turns off. |
| Status Indicator LED | Shows network and call status. | Green for connected, red for no service. |
| Volume Keys (+ / –) | Adjust call or ringer volume. | Press during a call or while the phone is idle. |
| Left Soft Key | Activates options shown above the key on screen. | Commonly used for “Menu” or “Select.” |
| Right Soft Key | Performs the secondary on-screen action. | Often used for “Back” or “Cancel.” |
| 2-way Navi-key (Directional Pad) | Moves through menu items. | Press arrows to navigate and center to confirm. |
| Green Key (Send) | Starts or answers a call. | Press after dialing or to accept incoming calls. |
| Red Key (End/Power) | Ends a call or exits a menu. | Press to hang up or return to standby. |
| Keypad | Number and symbol entry. | Used for dialing numbers or entering text. |
| Microphone | Captures your voice. | Speak normally while holding the phone 1–2 inches from your mouth. |
| Earpiece | Plays audio during calls. | Hold near your ear for private conversations. |
| Accessory Connector | Connects chargers, data cables, or adapters. | Located at the bottom of the phone. |
Side Views

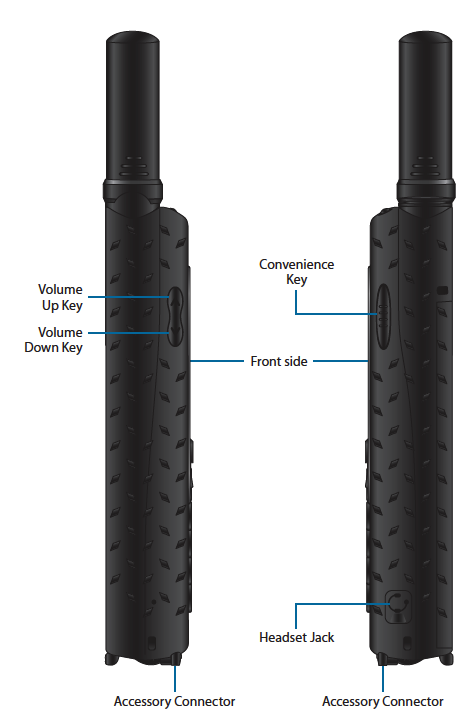

(Image: Side view of the Iridium Extreme showing side keys. Alt text: Iridium Extreme side view with labelled volume, convenience, and SOS buttons.)
| Button | Function | Use It For |
|---|---|---|
| Volume Up / Down Keys | Adjust in-call or alert volume. | Fine-tune sound without entering the menu. |
| Convenience Key | Shortcut to frequently used functions (programmable). | Commonly used for quick access to voicemail or messaging. |
| Programmable SOS Button | Triggers emergency mode when lifted and held. | Activates SOS to contact emergency response (see How to Send an SOS). |
| SOS Indicator LED | Flashes red when SOS is active. | Confirms that the emergency signal is being sent. |
| Headset Jack (2.5 mm) | Connects the Iridium wired headset. | Allows for hands-free operation. |
Important: Keep the SOS button cover closed when not in use to prevent accidental activation.
Quick Reference: Using Buttons During Common Tasks
| Task | Key Buttons | What to Do |
|---|---|---|
| Place a call | Green Key, Keypad | Dial the number, then press Green Key. |
| End a call | Red Key | Press once to hang up. |
| Adjust volume | Volume + / – | Press during a call to increase or decrease volume. |
| Access menus | Left Soft Key, Navi-key | Press Menu, then use arrows to scroll through options. |
| Activate SOS | SOS Button | Lift cover, press and hold until you hear a tone. |
| Lock/Unlock keypad | Menu → Keypad Lock | Prevents accidental key presses. |
